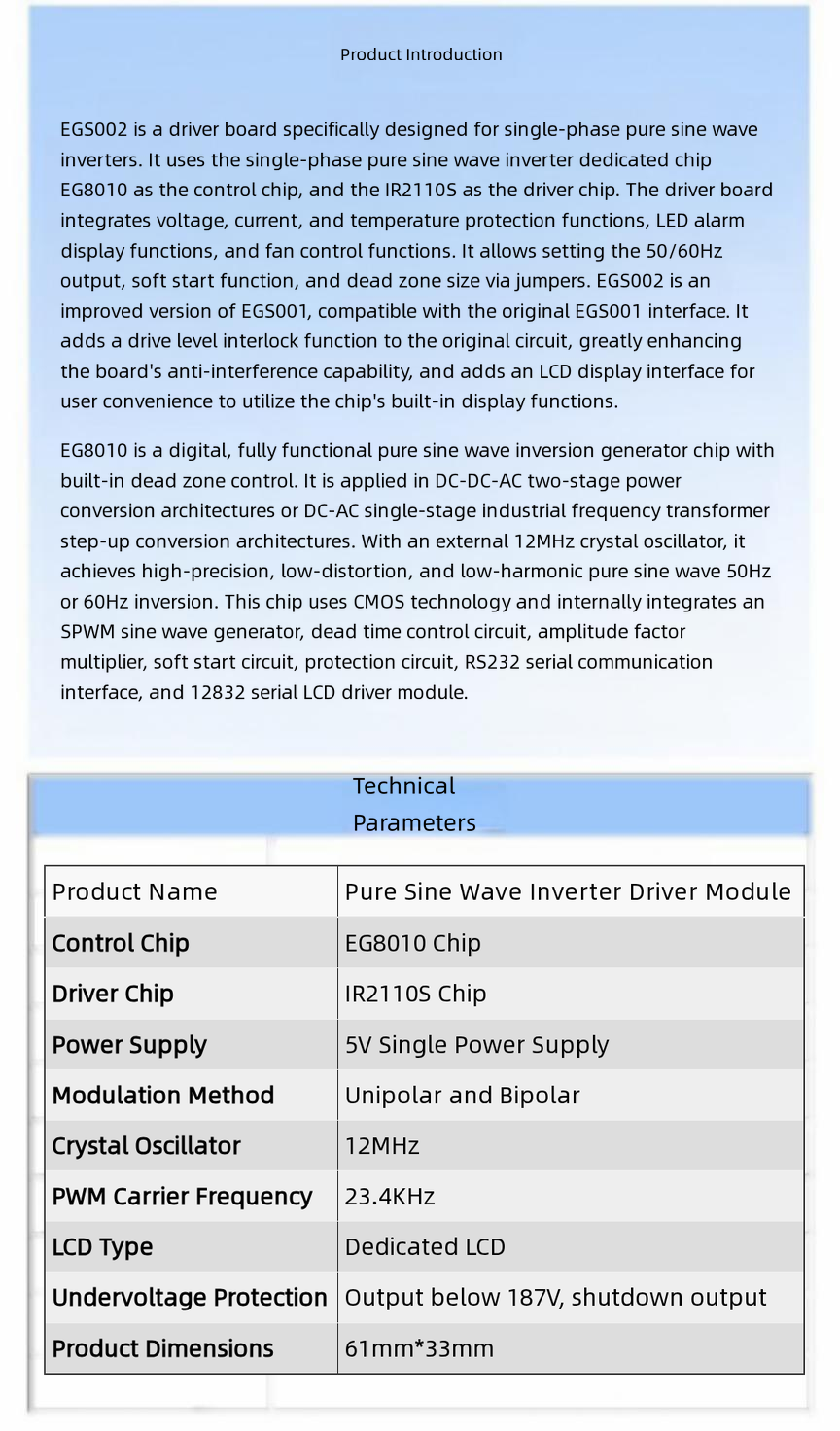

Product Features

- 5V Single Power Supply
- Pin-configurable 4 Pure Sine Wave Output Frequencies: 50Hz fixed frequency, 60Hz fixed frequency, 0-100Hz adjustable frequency, 0-400Hz adjustable frequency.
- Unipolar and Bipolar Modulation Modes
- Built-in Dead-time Control: Pin-configurable 4 dead-time settings: 300ns, 500ns, 1.0µs, 1.5µs.
- External 12MHz Crystal Oscillator
- PWM Carrier Frequency: 23.4kHz
- Real-time Processing of Voltage, Current, and Temperature Feedback
- Protection Functions: Over-voltage, Under-voltage, Over-current, and Over-temperature protection.
- Pin-configurable Soft-start Mode: 1s response time.
- Serial Communication: Allows setting output voltage, frequency, and other parameters.
- External Serial LCD Display Module: Displays inverter voltage, frequency, temperature, current, and other information.
