Description
Package Included:

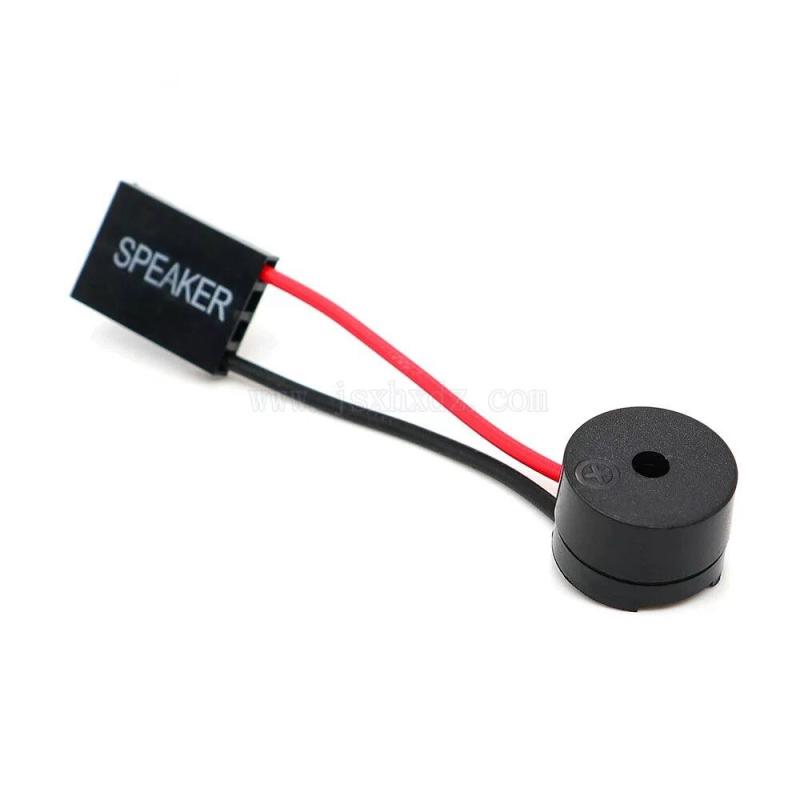

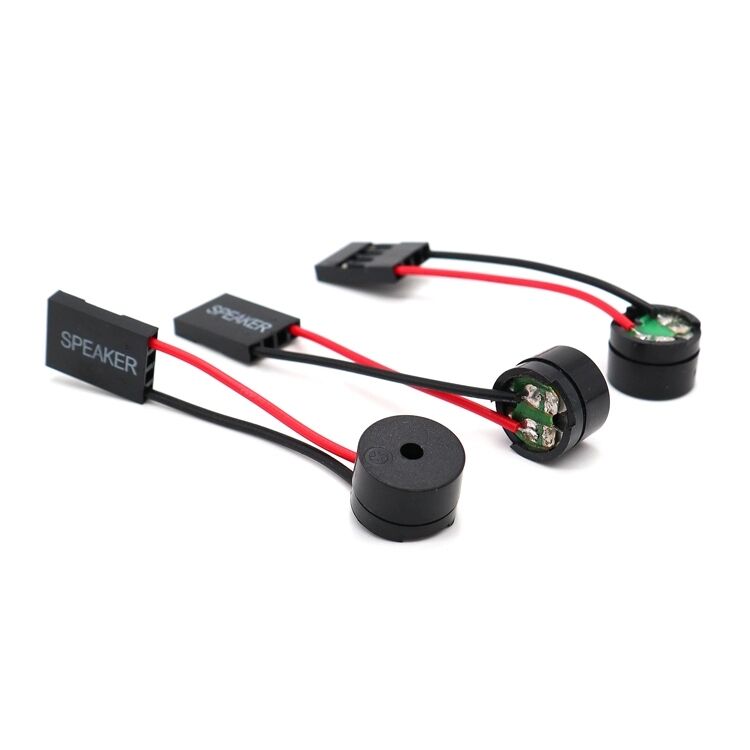

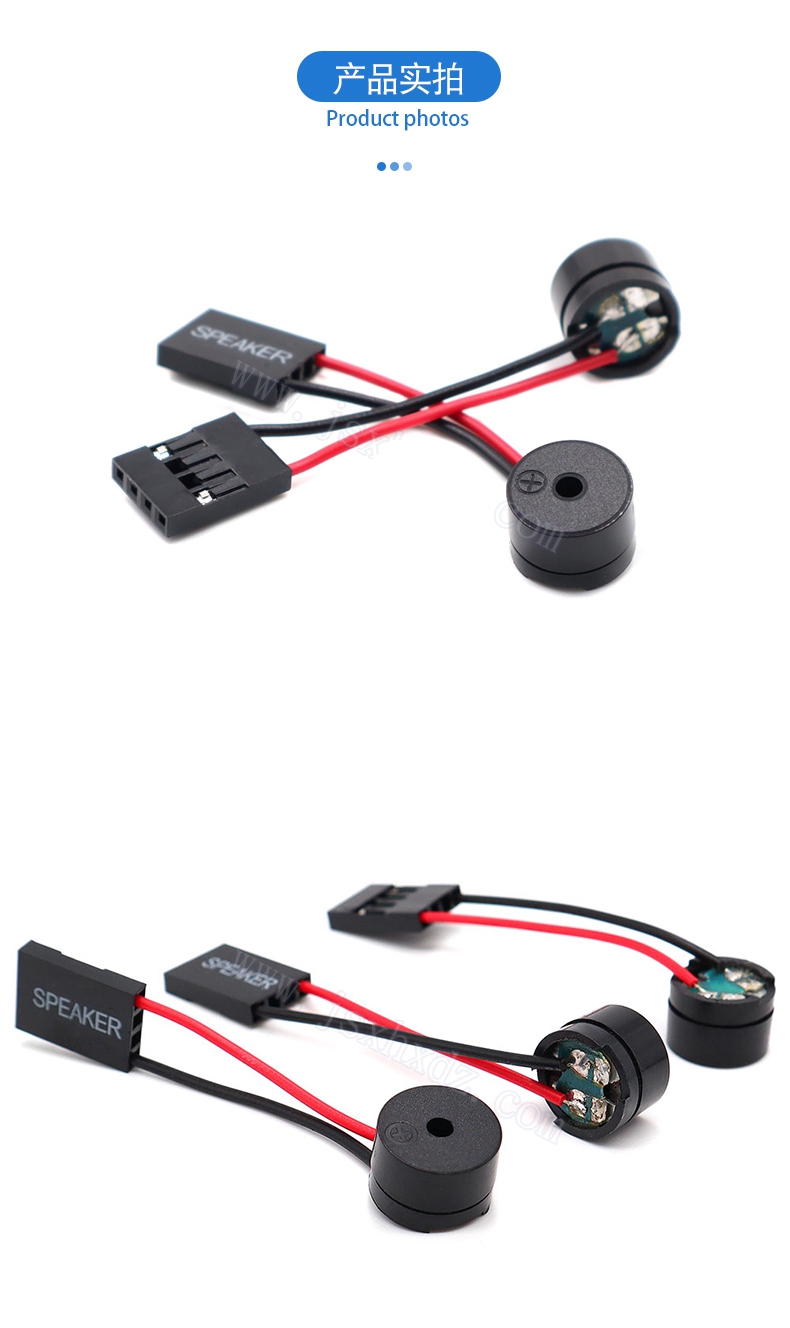

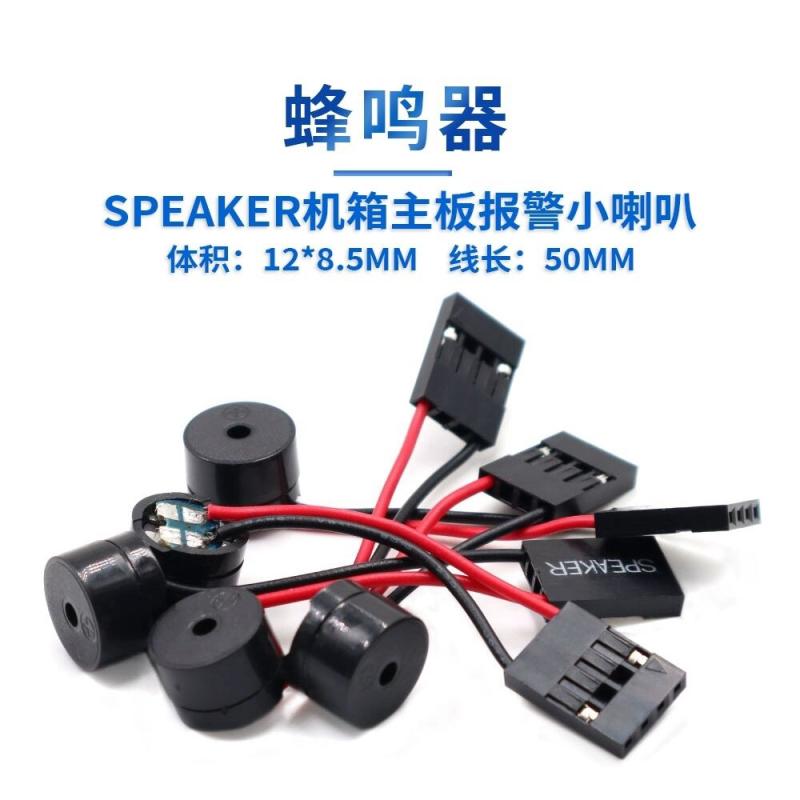

5 X Motherboard Alarm Buzzer
AWARD BIOS ringing of the general meaning is:
1 short: the system starts properly, which we hear every day, but also that machines without any
problems.
2 short: General error, please enter the CMOS Setup, reset the incorrect options.
1 long 1 short: RAM or motherboard error, try for a memory, if that does not work, had to replace
the motherboard.
1 long 2 short: Monitor or display card error.
1 long 3 short: Keyboard controller error, check the motherboard.
1 long 9 short: board Flash RAM or EPROM error, BIOS damage. For the block Flash RAM try.
Continuous sound (long beeps): memory is not seated or damaged. Re-insert the memory, if that
does not work, replace only a memory.
It kept ringing: power supply, display and graphics card connected.
Check all plugs.
Repeat short ring: Power problems.
No sound No display: power problems.
